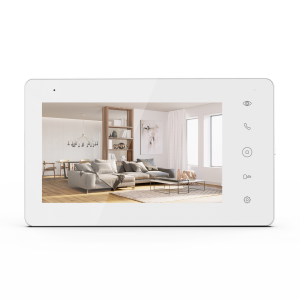

ER009ATW
Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, Wi-Fi 802.11 a/b/g/n, PLC, All In One, Central Power Supply, Non Polarity
Product detail
1080P 7″ video door phone with touch buttons
HD IPS screen 1024*600 & HD glass
2-Wire IP Video Intercom System
Quad video recording
Support 8 panels or cameras view
Human detection
Powerful smart mobile APP talk & unlock
Support ONVIF IP cameras
Monitoring of video door bell or CCTV from mobile APP
Push notifications
Customize UI & Melody & Voice message
Button light background
Support max.128GB SD Card & flash max.100pcs picture
Lock control / Calendar / Alarm clock / No disturb
Simple DVR motion detection / Photo frame / Multimedia manager
Auto leave message function
Built in Wi-Fi: 2.4G&5.8G Dual frequency 802.11 a/b/g/n
All in One: Just a 2-wire cable
Non Polarity: Never afraid of electric shock
Bus transmission: Expandable and flexible diagram
Central power supply: No black pigtail to home socket
-

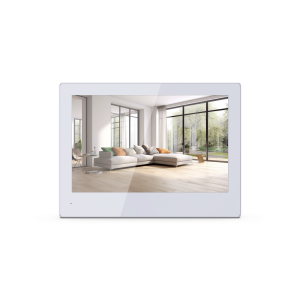

ER015ATW
Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, Wi-Fi 802.11b/g/n, PLC, All In One, Central Power Supply, Non Polarity,1080P 8″ colorful screen
Flash: 128MB
RAM: 128MB
Operating system: Linux operation system
Display screen: 8″ IPS screen
Display resolution: 1280×800
Operation method: Touch screen
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker
Audio compression standard: G.711U
Audio compression rate: 64Kbps
Audio quality: Noise suppression and echo cancellation
PLC rate: Max.500Mbps
Network protocol: TCP/IP, RTSP, SIP
Wifi: 2.4G&5G
Micro SD card: Max to 512G, SD
Power supply: DC24-36V, 8W
Ringbell: NO (MAX AC/DC36V 4A)
Support pixels: Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera
Video compression standard: H.265 (default), H264
Working temperature: 0°C to +50°C
Working humidity: 10%-90%
Dimensions: 200x149x23.5mm
PRODUCT DETAIL
1080P 8″ video door phone
IPS1280*800
2-Wire IP Video Intercom System
Quad video recording
Support 8 panels or cameras view
Human detection
Powerful smart mobile APP talk & unlock
Support ONVIF IP cameras
Monitoring of video door bell or CCTV from mobile APP
Push notifications
Customize UI & Melody & Voice message
Button light background
Support max.512GB SD Card
Lock control / Calendar / Alarm clock / No disturb
Simple DVR motion detection / Photo frame / Multimedia manager
Auto leave message function
Wi-Fi 2.4G &5G
All in One: Just a 2-wire cable
Non Polarity: Never afraid of electric shock
Bus transmission: Expandable and flexible diagram
Central power supply: No black pigtail to home socket
-
ED004-1AID
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
- Processor: High-Performance Embedded SOC Processor
- Operation system: Embedded Linux Operation System
- Camera: CMOS Low Illumination 2 MP HD Colorful Camera
- Video compression standard: H.265 (default), H264
- Resolution: 1920×1080
- Video frame rate: 25 fps
- Audio input: Built-in Omnidirectional Microphone
- Audio output: Built-in Loudspeaker
- Audio compression standard: G.711 U
- Audio compression rate: 64 Kbps
- Audio quality: Noise Suppression and Echo Cancellation
- Light supplement mode: IR supplement
- PLC rate: Max. 500Mbps
- Carrier voltage: 18V-36VDC
- Lock: 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
- Power supply: 18V-36VDC
- Viewing Angle: 120°
- Power consumption: 6W(Max), 3.5W(Standby)
- Family max.: 1
- Working temperature: -40°C – 60°C
- Working humidity: 10% – 90%
- IP protection level: IP66
- Dimensions: 154x55x21mm
PRODUCT DETAIL
CMOS 2MP HD colorful camera
Two-wire interface
Wide viewing angle
Supports 1 apartment
Support ID/IC Cards Unlock
IR supplement
10M/100M Self-adaptive Etherne
Vandal-proof with full metal case
Support anti-disassembly alarm function
ID/IC INTERFACE:
125KHZ (ID) / 13.56MHZ (IC)
Em marine (ID) / Mifare (IC)
Supports ISO/IEC 18000-2 type A (ID)
Supports ISO/IEC 14443 type A 106kb/s (IC)
-
ED004-1A
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
- Processor: High-Performance Embedded SOC Processor
- Operation system: Embedded Linux Operation System
- Camera: CMOS Low Illumination 2 MP HD Colorful Camera
- Video compression standard: H.265 (default), H264
- Resolution: 1920×1080
- Video frame rate: 25 fps
- Audio input: Built-in Omnidirectional Microphone
- Audio output: Built-in Loudspeaker
- Audio compression standard: G.711 U
- Audio compression rate: 64 Kbps
- Audio quality: Noise Suppression and Echo Cancellation
- Light supplement mode: IR supplement
- PLC rate: Max. 500Mbps
- Carrier voltage: 18V-36VDC
- Lock: 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
- Power supply: 18V-36VDC
- Viewing Angle: 120°
- Power consumption: 6W(Max), 3.5W(Standby)
- Family max.: 1
- Working temperature: -40°C – 60°C
- Working humidity: 10% – 90%
- IP protection level: IP66
- Dimensions: 154x55x21mm
PRODUCT DETAIL
CMOS 2MP HD colorful camera
Two-wire interface
Wide viewing angle
Supports 1 apartment
IR supplement
10M/100M Self-adaptive Etherne
Vandal-proof with full metal case
Support anti-disassembly alarm function
-

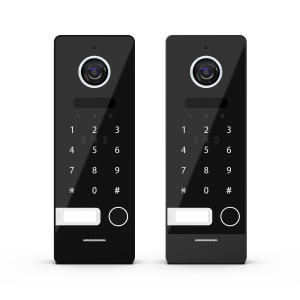

ED004-1APID
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
PRODUCT DETAIL
CMOS 2MP HD colorful camera
Two-wire interface
Wide viewing angle 125°
Supports 1 apartment
Support ID/IC Cards & Password Unlock
IR supplement
10M/100M Self-adaptive Etherne
Vandal-proof with full metal case
Support anti-disassembly alarm function
Working Temperature -30°C ~ +60°C
Power supply DC24-36V, 6W
ID/IC INTERFACE:
125KHZ (ID) / 13.56MHZ (IC)
Em marine (ID) / Mifare (IC)
Supports ISO/IEC 18000-2 type A (ID)
Supports ISO/IEC 14443 type A 106kb/s (IC)
-

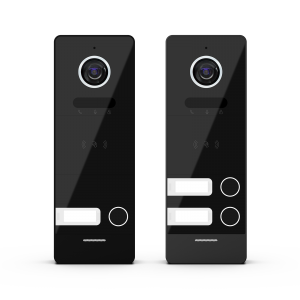

ED004-2A
1080P AHD Metal case All In One Non Polarity Central Power Supply
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
- Processor: High-Performance Embedded SOC Processor
- Operation system: Embedded Linux Operation System
- Camera: CMOS Low Illumination 2 MP HD Colorful Camera
- Video compression standard: H.265 (default), H264
- Resolution: 1920×1080
- Video frame rate: 25 fps
- Audio input: Built-in Omnidirectional Microphone
- Audio output: Built-in Loudspeaker
- Audio compression standard: G.711 U
- Audio compression rate: 64 Kbps
- Audio quality: Noise Suppression and Echo Cancellation
- Light supplement mode: IR supplement
- PLC rate: Max. 500Mbps
- Carrier voltage: 18V-36VDC
- Lock: 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
- Power supply: 18V-36VDC
- Viewing Angle: 120°
- Power consumption: 6W(Max), 3.5W(Standby)
- Family max.: 2
- Working temperature: -40°C – 60°C
- Working humidity: 10% – 90%
- IP protection level: IP66
- Dimensions: 154x55x21mm
PRODUCT DETAIL
CMOS 2MP HD colorful camera
Two-wire interface
Wide viewing angle
Support 2 apartments
IR supplement
10M/100M Self-adaptive Etherne
Vandal-proof with full metal case
Support anti-disassembly alarm function
-

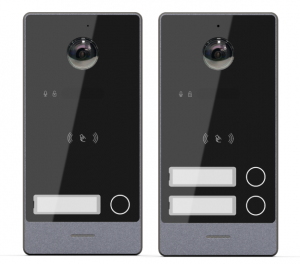

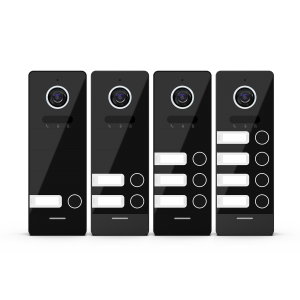

ED008-1/2/3/4A
IP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
PRODUCT DETAIL
Household max.:1/2/3/4
Camera:CMOS Low Illumination 2 MP HD Colorful Camera
Angle of view:H:125°, V:72° / H:150°
Supplement light:Smart IR
Video compression standard:H.265 (default), H.264
Gate:NO/NC (MAX AC/DC30V 4A)
Lock control:NO (MAX DC12V 700mA)
External chime:Support
Exit button:Support
Door contact:Support
Tamper alarm:Support
Connection:2 wire BUS
Protection:IP65, IK07
Ethernet:10M/100Mbps
Installation:Surface
Product size:162x82x29mm
Materials:Aluminum
Working temperature:-30°C~+60°C
Power supply:DC24-36V, 8W
-
ED004-20APID
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
PRODUCT DETAIL
CMOS 2MP HD colorful camera
Two-wire interface
Wide viewing angle 125°
Supports 20 apartments
Support ID/IC Cards & Password Unlock
IR supplement
10M/100M Self-adaptive Etherne
Vandal-proof with full metal case
Support anti-disassembly alarm function
1.3″ screen display
Working Temperature -30°C~+60°C
ID/IC INTERFACE:
125KHZ (ID) / 13.56MHZ (IC)
Em marine (ID) / Mifare (IC)
Supports ISO/IEC 18000-2 type A (ID)
Supports ISO/IEC 14443 type A 106kb/s (IC)
-

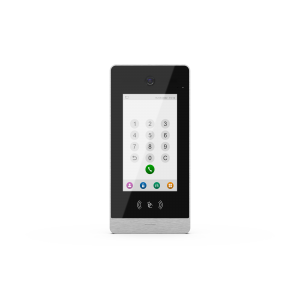

ED006AID/IC
2-Wire Video Apartment Door Station
- Display: 7″ IPS Touchscreen with 1024×600 resolution for clear visuals.
- Cameras: HD cameras at 2MP resolution with a 125° wide viewing angle.
- WDR Technology: Enhances image quality by balancing light and dark areas.
- Audio: Full Duplex Communication for clear two-way audio.
- Video Compression: Supports H.265 & H.264.
- Multiple Entry Methods: IC card (13.56MHz), ID card (125kHz), PIN code, mobile app, QR code, and call.
- User Capacity: Supports up to 9,999 users and 20,000 cards.
- Security Features: Tamper alarm and EXIT button support.
- Control Capabilities: Controls gate and door locks, with WG input and output supported.
- Integration: Easy integration with other SIP devices using SIP 2.0 protocol.
- Durable Design: IP65 & IK07 rated for protection.
- Mounting Options: Flexible surface or flush mounting.
- Power Supply: DC 24-36V. -

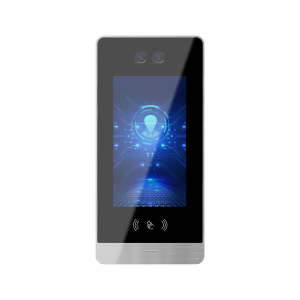

ED006AF
2-Wire Facial Recognition Video Apartment Door Station
- Display: 7″ IPS Touchscreen with 1024×600 resolution for clear visuals.
- Cameras: Dual HD cameras at 2MP resolution with a 125° wide viewing angle.
- WDR Technology: Enhances image quality by balancing light and dark areas.
- Audio: Full Duplex Communication for clear two-way audio.
- Video Compression: Supports H.265 & H.264.
- Multiple Entry Methods: Access via face recognition, IC card (13.56MHz), ID card (125kHz), PIN code, mobile app, QR code, and call.
- Anti-Spoofing: Protects against unauthorized access using photos or videos.
- User Capacity: Supports up to 9,999 users, 10,000 faces, and 20,000 cards.
- Security Features: Tamper alarm and EXIT button support.
- Control Capabilities: Controls gate and door locks, with WG input and output supported.
- Integration: Easy integration with other SIP devices using SIP 2.0 protocol.
- Durable Design: IP65 & IK07 rated for protection.
- Mounting Options: Flexible surface or flush mounting.
- Power Supply: DC 24-36V. -

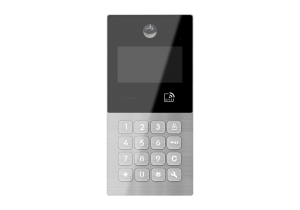

ED0011A
2-Wire Video Apartment Door Station
- Display: 4.3″ Screen with 480*272 resolution for clear visuals.
- Cameras: HD cameras at 2MP resolution with a 125° wide viewing angle.
- WDR Technology: Enhances image quality by balancing light and dark areas.
- Audio: Full Duplex Communication for clear two-way audio.
- Video Compression: Supports H.265 & H.264.
- Multiple Entry Methods: IC card (13.56MHz), ID card (125kHz), PIN code, mobile app, QR code, and call.
- Anti-Spoofing: Protects against unauthorized access using photos or videos.
- User Capacity: Supports up to 9,999 users and 20,000 cards.
- Security Features: Tamper alarm and EXIT button support.
- Control Capabilities: Controls gate and door locks, with WG input and output supported.
- Integration: Easy integration with other SIP devices using SIP 2.0 protocol.
- Durable Design: IP65 & IK07 rated for protection.
- Mounting Options: Flexible surface or flush mounting.
- Power Supply: DC 24-36V. -

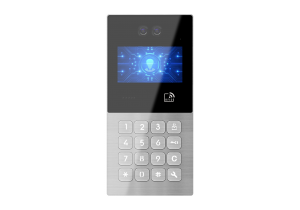

ED011AF
2-Wire Facial Recognition Video Apartment Door Station
- Display: 4.3″ Screen with 480*272 resolution for clear visuals.
- Cameras: Dual HD cameras at 2MP resolution with a 125° wide viewing angle.
- WDR Technology: Enhances image quality by balancing light and dark areas.
- Audio: Full Duplex Communication for clear two-way audio.
- Video Compression: Supports H.265 & H.264.
- Multiple Entry Methods: Access via face recognition, IC card (13.56MHz), ID card (125kHz), PIN code, mobile app, QR code, and call.
- Anti-Spoofing: Protects against unauthorized access using photos or videos.
- User Capacity: Supports up to 9,999 users, 10,000 faces, and 20,000 cards.
- Security Features: Tamper alarm and EXIT button support.
- Control Capabilities: Controls gate and door locks, with WG input and output supported.
- Integration: Easy integration with other SIP devices using SIP 2.0 protocol.
- Durable Design: IP65 & IK07 rated for protection.
- Mounting Options: Flexible surface or flush mounting.
- Power Supply: DC 24-36V.
