4-Wire AHD Video Intercom

  • ED009HDID/IC

    ED009HDID/IC

    Building system CAT-6 connection, outdoor pannel, ID UNLOCK: EM4001,EM4100,TK4001,TK4100, IC UNLOCK Mifare S50,S70,FM11RF08

    •  Apartments Max.: 9999
    •  Camera: 1/2.9″ Color CMOS
    •  Signal Format: CVBS / AHD / TVI / CVI
    •  Camera Resolution: 1080P
    •  Viewing Angle: 98°
    •  Protection Standard: IP54
    •  Case: Metal Case & Vandal-Proof
    •  Night Vision: IR
    •  Install: Flush Mount
    •  Cable: CAT-6
    •  Lock Control: Password & ID/IC Cards Unlock
    •  Cards Max.: 2048pcs
    •  Power Voltage: 18-36V
    •  Power Consumption: 12.5W(Max), 3W(Standby)
    •  Operating Temperature: -30℃ to +60℃
    •  Dimension: 370x145x34mm



    PRODUCT DETAIL

    * Building system CAT-5 connection, outdoor pannel

    * High-Definition color camera

    * Wide viewing angle

    * Protection Standard: IP54

    * With night vision

    * Metal Case & Vandal-Proof

    * CAT-6 connection

    * Pit construction

    * Supports ID/IC Cards unclock control



    * Apartments outdoor panel with metal touch buttons

    * Night vision

    * Connection: CAT-6

    * Construction: wall mounted

    * Support lock control



  • ED004-1/2/3/4HD

    ED004-1/2/3/4HD

    IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.: 4
    •  Camera: 1/3″ Color CMOS
    •  Signal Format: CVBS / AHD / CVI / TVI
    •  Camera Resolution: 800TVL / 1080P
    •  Viewing Angle: 120° / 160° (Optional)
    •  Protection Standard: IP66
    •  Case: Metal Case & Vandal-Proof
    •  Night Vision: IR
    •  Install: Surface / Angled Mounting
    •  Cable: 4 Wires
    •  Lock Control: Support
    •  Power Voltage: DC10-15V
    •  Power Consumption: 4W (Max)
    •  Operating Temperature: -30℃ to +60℃
    •  Dimension: 154x55x21mm



    PRODUCT DEDTAIL

    Door camera

    Supports 4 apartments

    High-Definition CMOS color camera

    IP66 waterproof

    Wide view angle

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control



  • ED004HDPID/PIC

    ED004HDPID/PIC



    ID/IC Cards & Password Unlock Control, IP66 waterproof, Night Vision, Metal case, 4 wires connection



    •  Apartments Max.: 1
    •  Camera: 1/3″ Color CMOS
    •  Signal Format: CVBS / AHD / CVI / TVI
    •  Camera Resolution: 800TVL / 1080P
    •  Viewing Angle: 120° / 160° (Optional)
    •  Protection Standard: IP66
    •  Case: Metal Case & Vandal-Proof
    •  Night Vision: IR
    •  Install: Surface / Angled Mounting
    •  Cable: 4 Wires
    •  Lock Control: ID/IC Cards & Password Unlock Control
    •  Power Voltage: DC10-15V
    •  Power Consumption: 4W (Max)
    •  Operating Temperature: -30℃ to +60℃
    •  Dimension: 154x55x21mm



    PRODUCT DETAIL

    Door camera

    ID cards and password unlock

    Weigand 26 reader

    High-Definition CMOS color camera

    IP66 waterproof

    Wide view angle

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control





  • ED002HDID/IC

    ED002HDID/IC

    ID/IC Cards Unlock Control, IP66 waterproof, Night Vision, Metal case, 4 wires connection



    PRODUCT DETAIL

    Door camera

    ID/IC cards unlock

    Weigand 26 reader

    High-Definition CMOS color camera

    IP66 & IK07

    Wide view angle 120°

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    Working Temperature -30°C ~ +60°C

    Power Supply DC10-15V, 12W

    Dimensions 131x46x20mm



  • ED002HD

    ED002HD

    IP66 waterproof, Night Vision, Metal case, 4 wires connection



    PRODUCT DETAIL

    Door camera

    High-Definition CMOS color camera

    120° view angle

    IP66 & IK09

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    Working Temperature -30°C ~ +60°C

    Power Supply DC10-15V, 12W

    Dimensions 131x46x20mm





  • ED003HD

    ED003HD

    IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.: 1
    •  Camera: 1/3″ Color CMOS
    •  Signal Format: CVBS / AHD / CVI / TVI
    •  Camera Resolution: 800TVL / 1080P
    •  Viewing Angle: 120° / 160° (Optional)
    •  Protection Standard: IP66
    •  Case: Metal Case & Vandal-Proof
    •  Night Vision: IR-CUT
    •  Install: Surface / Angled Mounting
    •  Cable: 4 Wires
    •  Lock Control: Support
    •  Power Voltage: DC10-15V
    •  Power Consumption: 3.5W (Max)
    •  Operating Temperature: -30℃ to +60℃
    •  Dimension: 131x46x20mm





    PRODUCT DETAIL

    Door camera

    High-Definition CMOS color camera

    120°/160° view angle

    IP66 waterproof

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control



  • ER010HDMW

    ER010HDMW



    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet/Wi-Fi 802.11 a/b/g/n, 15 VDC



    •  Screen: 10.1″ Color Digital Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Network Interface: 10M / 100M self-adaption
    •  Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
    •  IEEE standards: IEEE 802.11 a/b/g/n
    •  Networking Way: WIFI / RJ45
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 12W(Max), 4.5W(Standby)
    •  Power Supply: AC100-240V 50/60Hz / DC15V/0.8A
    •  Dimension: 255x180x21mm



    PRODUCT DETAIL

    Memory 10.1″ video door phone with touch buttons

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    With TUYA APP control

    10/100Mbps Ethernet

    Build in WiFi Dual-Brand 2.4G & 5G

    Two-way talk

    Easy to operation

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Event preview with advanced pre-roll video

    Human motion detection and alerts

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    Suface-mounted

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock





  • ER010HDTW

    ER010HDTW

    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet/Wi-Fi 802.11 a/b/g/n, 15 VDC

    •  Screen: 10.1″ Capacitive Touch Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Network Interface: 10M / 100M self-adaption
    •  Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
    •  IEEE standards: IEEE 802.11 a/b/g/n
    •  Networking Way: WIFI / RJ45
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 12W(Max), 4.5W(Standby)
    •  Power Supply: AC100-240V 50/60Hz / DC15V/0.8A
    •  Dimension: 255x180x21mm



    PRODUCT DETAIL

    Memory 10.1″ video door phone with touch screen

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Customize UI

    With TUYA APP control

    10/100Mbps Ethernet

    Build in WiFi Dual-Brand 2.4G & 5G

    Two-way talk

    Easy to operation

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Event preview with advanced pre-roll video

    Human motion detection and alerts

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    Suface-mounted

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock



  • ER009HDMW

    ER009HDMW



    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet/Wi-Fi 802.11 a/b/g/n, 15 VDC



    •  Screen: 7″ IPS Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Network Interface: 10M / 100M self-adaption
    •  Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
    •  IEEE standards: IEEE 802.11 a/b/g/n
    •  Networking Way: WIFI / RJ45
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 12W(Max), 4.5W(Standby)
    •  Power Supply: AC100-240V 50/60Hz / DC15V/0.8A
    •  Dimension: 215x126x20mm



    PRODUCT DETAIL

    1080P 7″ video door phone with touch buttons

    Customize UI & Melody & Voice message

    Button light background

    With TUYA APP control

    10/100Mbps Ethernet

    Build in WiFi Dual-Brand 2.4G & 5G

    Two-way talk

    Easy to operation

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Event preview with advanced pre-roll video

    Human motion detection and alerts

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock





  • ER009HDTW

    ER009HDTW

    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet,Wi-Fi 802.11 a/b/g/n, 15 VDC.

    •  Screen: 7″ IPS Touch Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Network Interface: 10M / 100M self-adaption
    •  Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
    •  IEEE standards: IEEE 802.11 a/b/g/n
    •  Networking Way: WIFI / RJ45
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 12W(Max), 4.5W(Standby)
    •  Power Supply: AC100-240V 50/60Hz / DC15V/0.8A
    •  Dimension: 215x126x20mm



    PRODUCT DETAIL

    1080P 7″ video door phone with touch buttons

    HD IPS screen 1024*600 & HD glass

    Customize UI & Melody & Voice message

    Button light background

    Support max.128G SD Card & flash max.100pcs picture

    With TUYA APP control

    10/100Mbps Ethernet

    Build in WiFi Dual-Brand 2.4G & 5G

    Two-way talk

    Easy to operation

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Event preview with advanced pre-roll video

    Human motion detection and alerts

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock





  • ER012HDTW

    ER012HDTW



    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet,Wi-Fi 802.11 a/b/g/n, 15 VDC.



    •  Screen: 7″ Touch Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Network Interface: 10M / 100M self-adaption
    •  Operating frequencies: 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
    •  IEEE standards: IEEE 802.11 a/b/g/n
    •  Networking Way: WIFI / RJ45
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 12W(Max), 4.5W(Standby)
    •  Power Supply: AC100-240V 50/60Hz / DC15V/0.8A
    •  Dimension: 188x136x22mm



     PRODUCT DETAIL

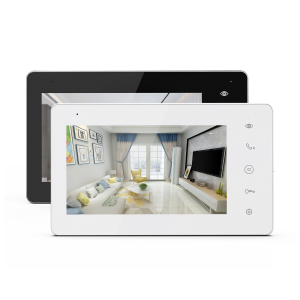

    1080P 7″ video door phone with touch buttons

    HD screen 1024*600

    Customize UI & Melody & Voice message

    Button light background

    Support max.128G SD Card & flash max.100pcs picture

    With TUYA APP control

    10/100Mbps Ethernet

    Build in WiFi Dual-Brand 2.4G & 5G

    Two-way talk

    Easy to operation

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Event preview with advanced pre-roll video

    Human motion detection and alerts

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock





  • ER010HDM

    ER010HDM

    Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager

    •  Screen: 10.1″ Color Digital Screen
    •  TFT Resolution: 1024×600
    •  Signal Supports: 800TVL / 1080P
    •  Signal Formats: CVBS / AHD
    •  Indoor Monitor Unlock Release: Supports
    •  Outdoor Panel Unlock Release: Supports
    •  Micro SD Card: Supports
    •  Video & Image Capture: Supports
    •  Connection: 4 Wires / CAT-5
    •  Max Wire Length Connection: 100 Meters
    •  Max Additional Monitors: 3
    •  Video Channels: 4
    •  Power Consumption: 9W(Max), 2.5W(Standby)
    •  Power Supply: AC110-240V / DC15V/0.8A
    •  Dimension: 255x180x21mm



    PRODUCT DETAIL

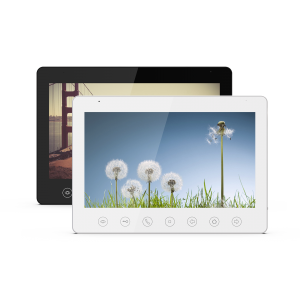

    Memory 10.1″ video door phone with touch buttons

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    Suface-mounted

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock



12 Next > >> Page 1 / 2
