4-Wire CVBS Video Intercom

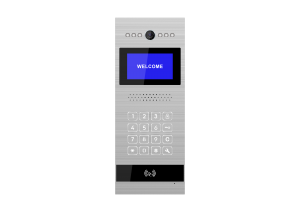

  • ED009ID/IC

    ED009ID/IC



    Building system CAT-5 connection, outdoor pannel, ID UNLOCK： EM4001,EM4100,TK4001,TK4100, IC UNLOCK Mifare S50,S70,FM11RF08



    •  Apartments Max.： 9999
    •  Camera： 1/3″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 98°
    •  Protection Standard： IP54
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Flush Mount
    •  Cable： CAT-5
    •  Lock Control： Password & ID/IC Cards Unlock
    •  Cards Max.： 2048pcs
    •  Power Voltage： 18-36V
    •  Power Consumption： 12.5W(Max), 3W(Standby)
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 370x145x34mm



    PRODUCT DETAIL

    * Building system CAT-5 connection, outdoor pannel

    * High-Definition color camera

    * Wide viewing angle

    * Protection Standard: IP54

    * With night vision

    * Metal Case & Vandal-Proof

    * CAT-5 connection

    * Pit construction

    * Supports ID/IC Cards unclock control



    * Apartments outdoor panel with metal touch buttons

    * Night vision

    * Connection: CAT-5

    * Construction: wall mounted

    * Support lock control





    inquirydetail

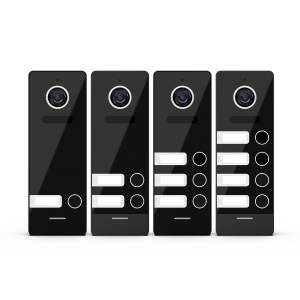

  • ED004-1/2/3/4

    ED004-1/2/3/4

    IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.： 4
    •  Camera： 1/4″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 120°
    •  Protection Standard： IP66
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Surface / Angled Mounting
    •  Cable： 4 Wires
    •  Lock Control： Support
    •  Power Voltage： DC10-15V
    •  Power Consumption： 4W (Max)
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 154x55x21mm



    PRODUCT DEDTAIL

    Door camera

    Supports 4 apartments

    High-Definition CMOS color camera

    IP66 waterproof

    Wide view angle

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control



    inquirydetail

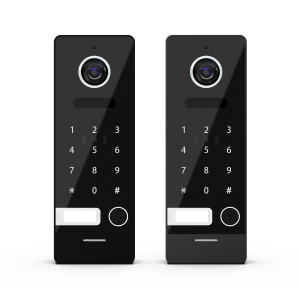

  • ED004PID/PIC

    ED004PID/PIC

    ID/IC Cards & Password Unlock Control, IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.： 1
    •  Camera： 1/4″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 120°
    •  Protection Standard： IP66
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Surface / Angled Mounting
    •  Cable： 4 Wires
    •  Lock Control： ID/IC Cards & Password Unlock Control
    •  Power Voltage： DC10-15V
    •  Power Consumption： 4W (Max)
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 154x55x21mm



    PRODUCT DETAIL

    Door camera

    ID cards and password unlock

    Weigand 26 reader

    High-Definition CMOS color camera

    IP66 waterproof

    Wide view angle

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    inquirydetail

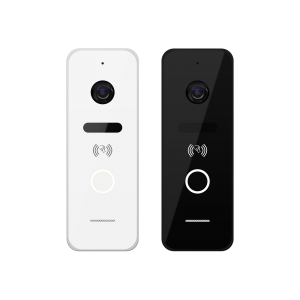

  • ED002ID/IC

    ED002ID/IC

    ID/IC Cards Unlock Control, IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.： 1
    •  Camera： 1/4″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 120°
    •  Protection Standard： IP66
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Surface / Angled Mounting
    •  Cable： 4 Wires
    •  Lock Control： ID/IC Cards Unlock Control
    •  Power Voltage： DC10-15V
    •  Power Consumption： 3.5W (Max)
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 131x46x20mm



    PRODUCT DEDTAIL

    Door camera

    ID/IC cards unlock

    Weigand 26 reader

    High-Definition CMOS color camera

    IP66 waterproof

    Wide view angle

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    inquirydetail

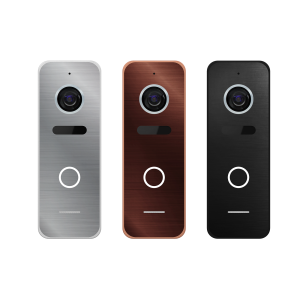

  • ED002

    ED002

    IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.： 1
    •  Camera： 1/4″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 125°
    •  Protection Standard： IP66
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Surface / Angled Mounting
    •  Cable： 4 Wires
    •  Lock Control： Support
    •  Power Voltage： DC10-15V, 12W
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 131x46x20mm





    PRODUCT DETAIL

    Door camera

    High-Definition CMOS color camera

    120° view angle

    IP66 & IK09

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    inquirydetail
  • ED003

    ED003

    IP66 waterproof, Night Vision, Metal case, 4 wires connection

    •  Apartments Max.： 1
    •  Camera： 1/4″ Color CMOS
    •  Signal Format： CVBS
    •  Camera Resolution： 800TVL
    •  Viewing Angle： 120°
    •  Protection Standard： IP66
    •  Case： Metal Case & Vandal-Proof
    •  Night Vision： IR
    •  Install： Surface / Angled Mounting
    •  Cable： 4 Wires
    •  Lock Control： Support
    •  Power Voltage： DC10-15V
    •  Power Consumption： 3.5W (Max)
    •  Operating Temperature： -30℃ to +60℃
    •  Dimension： 131x46x20mm



    PRODUCT DETAIL

    Door camera

    High-Definition CMOS color camera

    120° view angle

    IP66 waterproof

    Night Vision

    Metal case

    4 wires connection

    Surface/corner construction

    Supports lock control

    inquirydetail

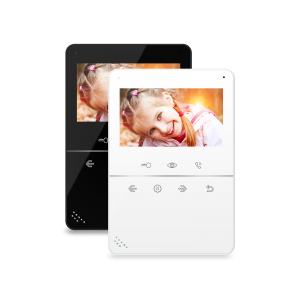

  • ER003B

    ER003B

    Acrylic face panel, Auto leave message function, Lock control / Broadcast / Calendar / Alarm clock / No disturb

    •  Screen： 4.3″ Color Digital Screen
    •  TFT Resolution： 480×272
    •  Signal Supports： 800TVL
    •  Signal Formats： CVBS
    •  Indoor Monitor Unlock Release： Supports
    •  Outdoor Panel Unlock Release： Supports
    •  Micro SD Card： Supports
    •  Video & Image Capture： Supports
    •  Connection： 4 Wires / CAT-5
    •  Max Wire Length Connection： 100 Meters
    •  Max Additional Monitors： 3
    •  Video Channels： 4
    •  Power Consumption： 9W(Max), 1.3W(Standby)
    •  Power Supply： AC110-240V / DC15V/0.8A
    •  Dimension： 171x116x16mm



    PRODUCT DETAIL

    Memory 4.3″ video door phone with touch buttons

    Acrylic face panel

    Lock control / Broadcast / Calendar / Alarm clock / No disturb

    Monitor doorbell or CCTV cameras

    Door-call transfers to other monitors

    Make calls between monitors

    Monitor listening to another monitor

    Simple DVR motion detection/Photo frame/Multimedia manager

    Auto leave message function

    Suface-mounted

    DC15V/0.8A / AC100-240V 50/60Hz (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock



    inquirydetail

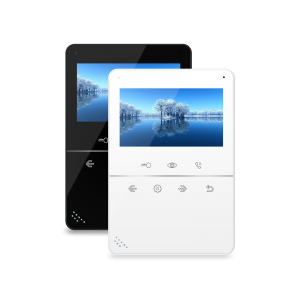

  • ER003A

    ER003A

    Acrylic face panel, Lock control / No disturb, Monitor doorbell or CCTV cameras, Door-Call transfer to other monitors



    •  Screen： 4.3″ Color Digital Screen
    •  TFT Resolution： 480×272
    •  Signal Supports： 800TVL
    •  Signal Formats： CVBS
    •  Indoor Monitor Unlock Release： Supports
    •  Outdoor Panel Unlock Release： Supports
    •  Micro SD Card： NO
    •  Video & Image Capture： NO
    •  Connection： 4 Wires / CAT-5
    •  Max Wire Length Connection： 100 Meters
    •  Max Additional Monitors： 3
    •  Video Channels： 4
    •  Power Consumption： 7W(Max), 0.7W(Standby)
    •  Power Supply： AC110-240V / DC15V/0.8A
    •  Dimension： 171x116x16mm



    PRODUCT DETAIL

    4.3″ video door phone with touch buttons

    Acrylic face panel

    Lock control / No disturb

    Monitor doorbell or CCTV cameras

    inquirydetail
  • ER013

    ER013

    Suface-mounted, Lock control / Broadcast / No disturb, Monitor doorbell or CCTV cameras

    •  Screen： 7″ Color Digital Screen
    •  TFT Resolution： 800×480
    •  Signal Supports： 800TVL
    •  Signal Formats： CVBS
    •  Indoor Monitor Unlock Release： Supports
    •  Outdoor Panel Unlock Release： Supports
    •  Micro SD Card： NO
    •  Video & Image Capture： NO
    •  Connection： 4 Wires / CAT-5
    •  Max Wire Length Connection： 100 Meters
    •  Max Additional Monitors： 3
    •  Video Channels： 4
    •  Power Consumption： 7W(Max), 0.7W(Standby)
    •  Power Supply： AC100-240V 50/60Hz / DC15V/0.8A (Optional)
    •  Dimension： 188x136x22mm



    PRODUCT DETAIL

    7″ Video door phone with touch buttons

    Lock control / Broadcast / No disturb

    Monitor doorbell or CCTV cameras

    Door-Call  transfer to other monitors

    Make calls between monitors

    Monitor listening to another monitor

    Suface-mounted

    AC100-240V 50/60Hz / DC15V/0.8A (Optional)



    Supports:

    * 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

    * 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

    * Door Panel unlock & Indoor monitor unlock
