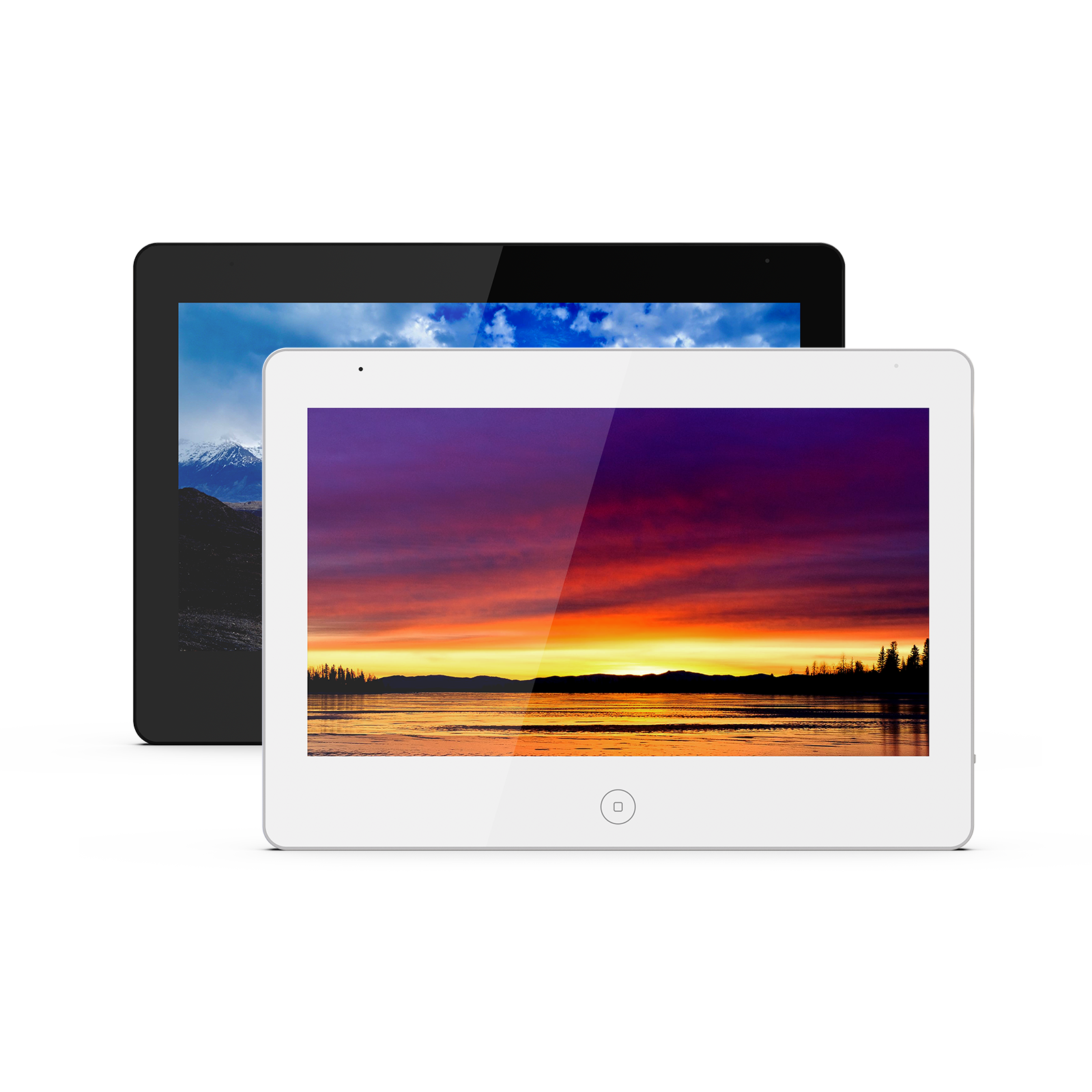

ER010HDTW

Short Description:

Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet/Wi-Fi 802.11 a/b/g/n, 15 VDC

•  Screen： 10.1″ Capacitive Touch Screen
•  TFT Resolution： 1024×600
•  Signal Supports： 800TVL / 1080P
•  Signal Formats： CVBS / AHD
•  Indoor Monitor Unlock Release： Supports
•  Outdoor Panel Unlock Release： Supports
•  Micro SD Card： Supports
•  Video & Image Capture： Supports
•  Connection： 4 Wires / CAT-5
•  Network Interface： 10M / 100M self-adaption
•  Operating frequencies： 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
•  IEEE standards： IEEE 802.11 a/b/g/n
•  Networking Way： WIFI / RJ45
•  Max Wire Length Connection： 100 Meters
•  Max Additional Monitors： 3
•  Video Channels： 4
•  Power Consumption： 12W(Max), 4.5W(Standby)
•  Power Supply： AC100-240V 50/60Hz / DC15V/0.8A
•  Dimension： 255x180x21mm

PRODUCT DETAIL

Memory 10.1″ video door phone with touch screen

Lock control / Broadcast / Calendar / Alarm clock / No disturb

Customize UI

With TUYA APP control

10/100Mbps Ethernet

Build in WiFi Dual-Brand 2.4G & 5G

Two-way talk

Easy to operation

Monitor doorbell or CCTV cameras

Door-call transfers to other monitors

Event preview with advanced pre-roll video

Human motion detection and alerts

Make calls between monitors

Monitor listening to another monitor

Simple DVR motion detection/Photo frame/Multimedia manager

Auto leave message function

Suface-mounted

DC15V/0.8A / AC100-240V 50/60Hz (Optional)

Supports:

* 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras

* 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

* Door Panel unlock & Indoor monitor unlock
